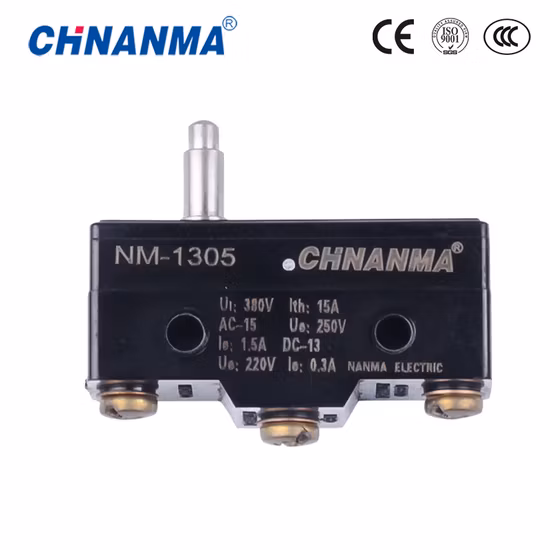

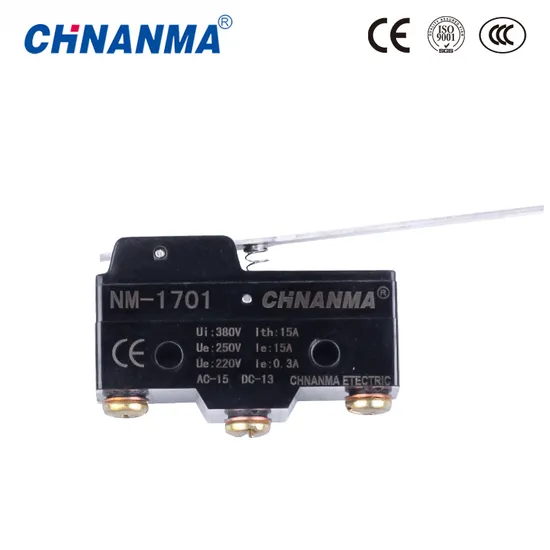

Nm-13 Series 3A-16A 250VAC Micro Switch Push Button Switch

Basic Info

Model NO.	NM-1305
Breaking Form	Single Type
Application	Tooling
Brand	Chnanma
Certification	CE, CCC
Weight	22 to 58g
Max. Voltage	AC250
IP	20
Operating Temperature	25 °c to +80 °c
Max. Current	15
Transport Package	100PCS in One Box or as Customer Request
Specification	CE
Trademark	Chnanma or as customer request
Origin	Zhejiang China (Mainland)
HS Code	8536500090
Production Capacity	100000000PCS/Year

Product Description

Tip material: Silver tip
Contact material: Brass
Level material: stainless steel top roller plunger
Ambient operating temperature: 25°C to 80°C (with no icing)
Ambient operating humidity: 35% to 85%RH

Specification

Rated voltage	Non-inductive load				Inductive load
	Resistive load		lamp load		Inductive load		Moto load
	N.C	N.O	N.C	N.O	N.C	N.O	N.C	N.O
125 VAC	15	15	15	15	5	2.5	Max 30	Max 15
250 VAC	15	15	15	15	3	1.5
500 VAC	3	3	2.5	2.5	1.5	0.75
8 VDC	15	15	15	15	5	5
14 VDC	15	15	1	1	5	5
30 VDC	6(2)	6	5	5	5	5
125 VDC	0.4	0.4	0.05	0.05	0.05	0.05
250 VDC	0.2	0.2	0.03	0.03	0.03	0.03

Notes:
1. Inductive load has a power factor of 0.4min. (AC) and a time constant or
7msec (DC).
2. Lamp load has an inrush current of 10 times the steady-state current,
while motor load has an inrush current or 6 times the steady-state current.
3.Characteristics

Operating speed	0.01mm to 1m/sec
Operating	Mechanically: 240 operations/min.
frequency	Electrically: 20 operations/min.
Contact resistance	15mΩmax. (initial)
Insulation	100MΩmin. (at 500VDC)
resistance
Dielectric strength	1000VAC, 50/60Hz for 1 minute between
	non-continuous terminals
	2000VAC, 50/60Hz for 1 minute between
	current-carrying part and ground
Vibration	Mechanical durability: 10 to 55Hz
	1.5mm double amplitude
Shock	Mechanical durability:
	Approx. 1,000m/sec2 (approx. 100G's)
	Malfunction durability:
	Approx. 300m/sec2 (approx. 30G's)
Ambient operating	General purpose type: -25°to +80°C
temperature	Sealed type: -15 to 80°C
Humidity	General purpose type: 85%RH max.
	Sealed type: 95%RH
Service life	Mechanically: 20,000,000 operations min
	Electrically: 500,000 operations min.
Weight	Approx. 22 to 58g

Definitions of operating characteristics

OF: Operating Force	RF:Releasing Force
TF: Total Force	FP:Free Position
OP: Operating Position	RP:Releasing Position
TTP: Total Travel Position	PT:Pretravel
OT: Overtravel	MD:Movement Differential
TT:Total Travel

Model	NM-1305
OF Max	350g
RF Min	114g
PT Max	0.4mm
OT Min	1.6mm
MD Max	0.05mm
EP Max
OP mm	28.2±0.5
